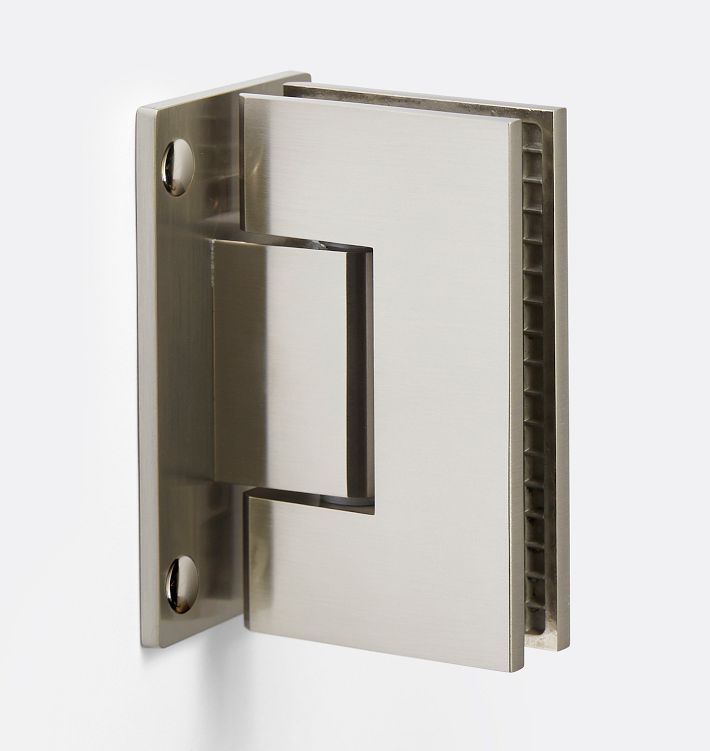

Wall Mount Glass Shower Door Hinge

Crafted from solid brass, the Wall Mount Shower Door Hinge accommodates 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, swings 90 degrees in both directions, and self-centers within 30 degrees of the closed position. Available in several finish options to coordinate with our bath lighting and hardware.

Details You'll Appreciate

• Solid brass
• For glass thickness 5/16" (8 mm) to 1/2" (12 mm)
• Self-centers within 30 degrees of closed position

Product Specifications

• Brass hinge, stainless steel screws and plastic gaskets included
• Glass fabrication and professional installation required
• For use in showers and high-moisture areas

Warning:

• This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65warnings.ca.gov.

• Width: 2"
• Height: 3-1/2"
• Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
• Hinge Capacity: 2 hinges will hold up to 99lbs, max door width 28"
• 3 hinges will hold up to 147lbs, max door width 32":
• Hinge Swings: 90 degree in or out
• Closing type: self-centering within 30 degrees of closed position
